High Strength Coil Feed Line MFL4-GF (0.6-6.0mm)

High strength compact coil feed line MFL4-GF is a high-performance metal processing equipment that can handle materials ranging from 0.6mm to 6.0mm in thickness. It is an excellent solution for industries that require efficient and precise material feeding, leveling, and cutting of metal sheets or coils with high tension strength. The compact design of this feed line makes it suitable for small to medium-sized production lines, and it is commonly used in industries such as automotive, appliance, and electronics manufacturing, as well as the construction industry. The feed line can handle a wide range of materials, including steel, stainless steel, and other ferrous and non-ferrous metals. The advanced control systems and high-performance capabilities of the product provide stable, accurate, and efficient metal processing, increasing production speed, reducing material waste, and improving product quality in industries that demand high-quality metal processing.
High Strength Coil Feed Line MFL4-GF (0.6-6.0mm)

Applicable Material


Raw Material Type: High Strength Steel steel, Hot-Rolled Metal steel, Cold-Rolled Metal steel, Galvanized Metal steel, Stainless Steel etc.

Coil Width: 100-1800 mm

Material Thickness: 0.6-6.0 mm

Max. Coil Weight: 25ton

Feed Speed: 20m/min

Yield Strength: ≤613 N/mm2

Tensile Strength: ≤980 N/mm2



Working Speed: 0-22m/min

Brief Profile of High Strength Coil Feed Line

Coil Feeding Lines with compact design are preferred to be used in case of only small available space as well as in case of less delicate coil material with big material square. They normally are used at middle-sized feeding lengths and middle-sized number of press strokes per minute.


Compact Feed Line for high strength material is designed to make the thick steels with higher yield strength above 400Mpa. They offer process reliability even for the most demanding materials. They are optimally suited for the manufacture of structural parts as well as for processing of high-strength materials,even for the higher ranges of strip thickness.With our Compact coil systems you can process coil material width from 400mm to 1800mm, coil thickness from 0.6-6.0mm, coil weight up to 25000kgs.


Compact Coil feed line is a metal forming process widely used to produce parts for various industries, such as automotive stamping, electronics stamping and appliances stamping and etc.

Application of High Strength Coil Feed Line

● AUTOMOTIVE


Manufacture of equipment for metal stamping of automotive parts. Structural car body parts and other parts like front brackets, brake pads, wipers, seat supports, electrical windows, exhaust pipes, catalytic converters, radiators, levers, pedals, gear box parts, wheels, damping supports, etc ...


● BUILDING & HOUSEHOLD


Feeding lines to produce a variety of metal components for the building and household sector and derivatives. Parts like braces, clamps, straps, locks and hinges for doors,furniture hardware, knifes, cooking ware carpentry parts, metal supports, perforated plates, etc ..



● HOME APPLIANCE & ElECTRONICS


Installations for the manufacture of parts for household appliances sector or white goods. Metal pieces like motor housings, doors,electric cabinet, shells and covers, trays, guides, caps, supports, brackets, handles, etc ...



● ILLUMINATION


Many solutions for the blanking of metal parts for lighting sector. Several parts such as housings, panels, brackets, feet, arms, buttons, diffusers, etc ...

Features of High Strength Coil Feed Line

● Advance Techniques


With the world’s leading automatic press techniques ,advanced and humanized management system,we unite thousands of elites dedicated to the development of automatic press,including top engineers in this field,experienced technicians, production workers with fine craftsmanship to ensure every equipment produced durable ,high-efficiency and stable.



● Modular control, simple and smart operation


Compact coil feeding machine is not only a simple combination of decoiler, straightener, and feeder machine into one unit, but also highly integrated control in operations. The hydraulic station, coil car, uncoiling motor, spindle and inverter, straightener part, servo feeder motor are connected with the PLC modular system and controlled by one touch screen, which is quite convenient and easy for operators.

Moreover, movable regulating handle is very convenient operation for installing and debugging when the machine is testing.



● Reliable Structure Design


Super large scale and plenty of advanced quality control measures including CNC machining, grinding machine, boring machine and Lathe machine equipment and various precision testing instruments from Germany, Japan and Taiwan. It can ensure the high precision and quality of all parts of machine.

What's more, all of main body makes surface treatment with our shot blasting machine before they are painted. With our shot blasting machine treatment, the machine surface is excellent for painting.they blast onto the surface of work piece with shots to clean and beautify the surface. The shot blasting also enhances the pressure stress of work piece surface and extends the lifespan.We also use high-end vehicle oil paint for our machine to have high level of painting quality and you don’t need to worry about broken painting problem under extremely nasty working environment.



● High precision straightening and feeding performance


The metal coils trips will be inserting into straightener-feeder part automatically after uncoiling, with photoelectric sensors for full closed loop control, no manual operation. The straightener roller and feeder roller mechanism are placed on the same precise platform to ensure the uniformity of parallel precision and to limit the error of leveling and feeding operation to the maximum extent.



● Wide range of metal coil stamping application


The high strength coil feeding line is not only suitable for normal material with thick thickness, but also can handle high strength material. It can deal with steel thickness up to 12mm coil width up to 1800mm with high precision straightening performance. Compact coil feeding line is ideal for the high strength material steel stamping in automotive,construction and electrical appliance industry manufacturing.



● Space-saving, easy installation and maintenance


Compact design is ideal for limited space workshop.

The compact coil feeding line is very easy to install, which can enter into mass production in a short time. Without a long material loop, the coil feeding line length is usually no more than 5m, some models such as MFL2 is only 3m length, which will save workplaces of stamping room. Thanks to the international brand core components, automatic lubrication system and self-inspection procedures, the compact coil feeding line have a very low failure rate and easy to maintenance

Specification of High Strength Coil Feed Line

ModelMFL4-600GFMFL4-800GFMFL4-1000GFMFL4-1300GFMFL4-1600GF
Material Width(mm)70-60070-80070-100070-130070-1600
Material Thickness(mm)0.6-6.0
Max.Coil Weight(kg)5000500070001000015000
Max.Coil O.D.(mm)1400
Coil l.D.(mm)φ470-520
Feed Length(mm)~500*
Max.Line Speed(m/min)16-24
StraightenerRoll (pcs)φ88mm*9(upper5/ lower 4)
Feed Roll(pcs)φ120mm*2 (upper 1/ lower 1)
Back-up Rolls (piece)φ88mm*220mm*3 Groups
Servo MotorAC15AC15AC15AC22AC30
Mandrel ExpansionHydraulic
Decoiler Motor(kw)2.23.75.57.511
Power(V)3phase 220V/380V/440V/50HZ
Operating Air(Mpa)0.49


Straightener Capacity( Yield strength σs≤613N/mm² ,Tensile strength σb≤980N/mm²)
Model Thickness(mm)
0.61.21.622.32.52.83.244.556
MFL4-600GF60060060060056849037629821915512795
MFL4-800GF60060060060056849037629821915512795
MFL4-1000GF60060060060056849037629821915512795
MFL4-1300GF60060060060056849037629821915512795

Main Parts of High Strength Coil Feed Line

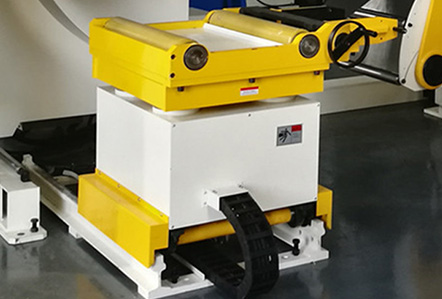

Coil Car

Coil Car

● Coil car has two function, one is assisting loading the coils on the spindle of decoiler parts, other is leading the uncoiling strips into the straightener-feeder parts.

● With the coil Car auxiliary loading, the operator can safely and conveniently for loading coils,when used for operation, the material coil is transferred to the mandral rack spindle smoothly.

● The coil car is equipped with the material coils anti-dumping baffle, which can effectively prevent the material coil from dumping when transferring materials with small material width.

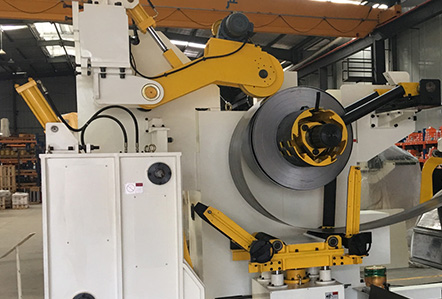

Decoiler Machine

Decoiler Machine

● After the coils holds on the spindle of decoiler machine, decoiler machine rotates intermittently to release the metal coil to metal strip, the support rollers on coil car will lead the strips into the straightener arm.

● Decoiler with support cantilever structure can loading up to 25ton. And there’re three groups of hydraulic wedged structure for uncoiler spindle expansion. Moreover,

● Material auto-alignment function as an optional meet your requirements.

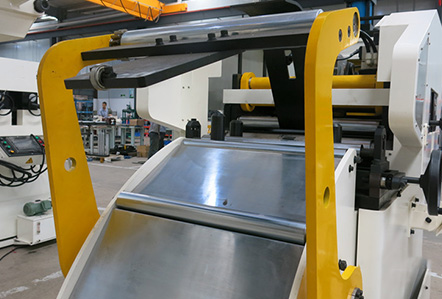

Coil Inlet Support Arm

Coil Inlet Support Arm

● After uncoiling process, the support rollers on the coil car will lead the material strips to coil inlet support arm which is driven by a hydraulic cylinder will close automatically to hold-down material strip when strip head touch the straightener part.

● The bottom inlet roller is geared transmission, sharing drive power with straightener rollers. When upper inlet roller goes down, the two rollers clamp the metal strip and lead it to the straightening part.

● These two rollers are made by high quality bearing steel, with sandblasting treatment, hardness reaches HRC60±2.

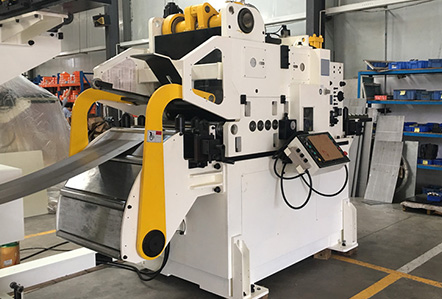

High Precision Straightener and Feeder

High Precision Straightener and Feeder

● The straightener feeder parts leveling the coil strips and feeding it into the stamping press and dies according to the fixed length controlled by PLC.

● Given the difference in coil at the beginning of rollers and the end of roller, it is usually necessary for an operator to always be monitoring straightening operations, and to manually carry out corrections to ensure a high degree of precision in straightening.

● With the unique electrically adjustment fitted on the MFL4-GF Series coil straightener-feeder, changes in the coil strips thickness are detected during production. Straightening correction is performed continuously and automatically. it making a significant contribution to operational efficiency.

● Moreover, additional backup roller can achieves a high precision straightening performance.

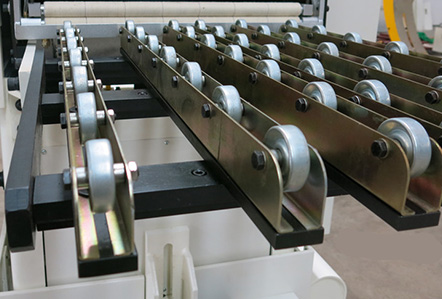

Discharging Support Bracket

Discharging Support Bracket

● The outlet support bracket is used to deliver the straightening strips to press die smoothly.

● When the coil material is thin thickness or soft material , or the distance between straightener-feeder and stamping dies is long, the strip can not be delivered the strip head into the die successfully, the support bracket will be help to reach it.

● The length of the support bracket is adjustable to meet different dimensions of stamping press machine and dies.

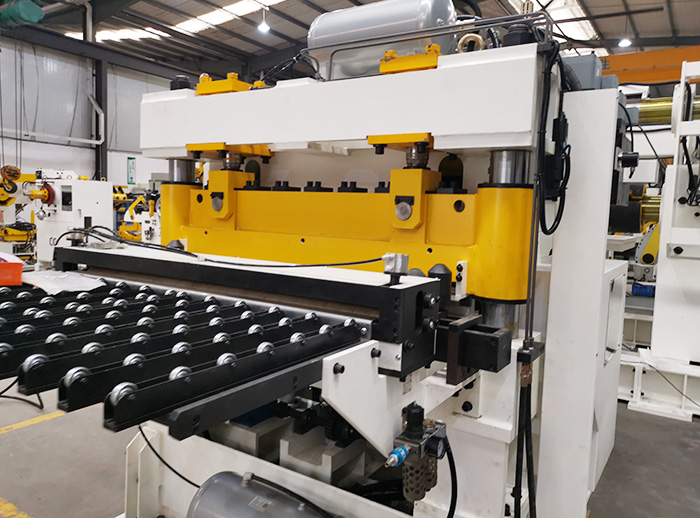

Hydraulic shear machine (Option)

Hydraulic shear machine (Option)

● A hydraulic shearing unit is used to cut the material heads and tails for productivity improvement and better stamping product quality.

● The hydraulic cutting unit has four sides scissors to achieve smooth cutting.

● It's operated by touch screen control and with manual scissors adjustment.

Automatic Lubrication Unit (Option)

Automatic Lubrication Unit (Option)

● Lubrication of steel strip before stamping will protect the stamping dies from damaging and prolonging the uselife.

● The automatic lubrication system is automatically controlled, with an oil loop recycling system, which will save oiling cost and prevent leakage.
