Decoiler Straightener

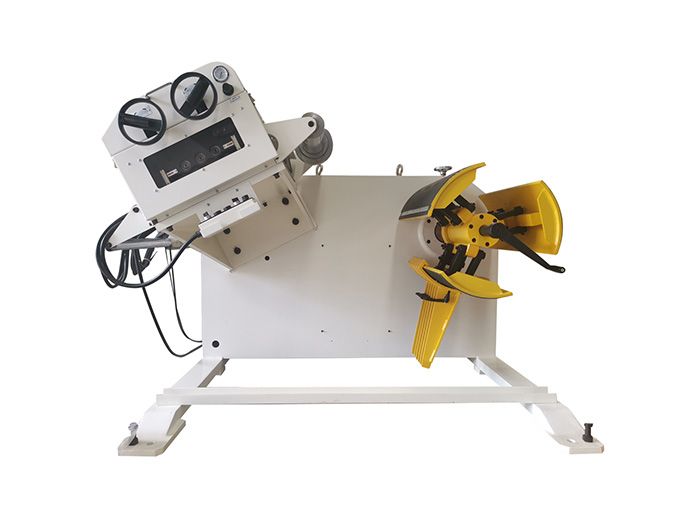

The SUNRUI 2-in-1 decoiler straightener integrates coil unwinding and precision leveling into a single, compact unit, eliminating the need for separate machines and intermediate material handling. This space-saving design delivers significant floor space savings, simplifies setup, and ensures consistent material flatness for downstream stamping operations—making it the ideal first choice for automatic stamping lines.
Our mechanical series offers reliable performance for standard applications, handling coil widths from 300 mm to 800 mm, material thicknesses from 0.4 mm to 6.0 mm, and load capacities up to 5,000 kg. For heavier coils or more demanding applications, our customized models provide enhanced capacity and performance.
All straightening rollers are manufactured from GCr15 bearing steel, heat-treated to HRC60°±2, hard-chrome plated, and precision-ground for extended service life and consistent flattening accuracy. The user-friendly design, with easy roller access and simple controls, minimizes downtime and simplifies maintenance.
Whether you need to process thin-gauge electronics materials or heavy-duty automotive steel, SUNRUI has a tailored 2-in-1 solution to optimize your production efficiency and part quality.
SUNRUI 2-in-1 Decoiler Straightener | Integrated Uncoiling & Precision Leveling for Efficient Stamping Lines
The SUNRUI 2-in-1 decoiler straightener integrates coil unwinding and precision leveling into a single, space-saving unit. By merging these two critical functions—uncoiling the metal coil and flattening the strip—this system eliminates the need for separate machines and intermediate material handling, delivering significant floor space savings and improved material flatness for downstream stamping operations .
The result? Simplified setup, reduced material handling, and consistent, reliable material straightening for a wide range of applications, from automotive parts to electronic components.
Engineered for Versatility and Performance
Available in three distinct series—GL, GL-H, and GL-B—our 2-in-1 systems are engineered to meet a wide range of material thickness, width, and precision requirements. Whether you are processing thin-gauge electronics materials or heavy-duty automotive steel, SUNRUI has a tailored solution to optimize your production efficiency .
GL-B Series (0.1–0.6mm): Ultra-precision thin-gauge leveling for electronics, mobile phone parts, PC components, and digital accessories where exceptional flatness is critical . Features 19 straightening rollers (9 upper/10 lower) for superior flatness accuracy.
GL Series (0.3–3.2mm): Versatile standard series for general metal stamping, hardware components, appliance parts, and automotive brackets. A cost-effective workhorse for most stamping applications .
GL-H Series (0.5–4.5mm): Heavy-duty series for thicker, high-strength materials. Ideal for automotive structural parts, high-strength steel stamping, and demanding appliance manufacturing . Handles coil weights up to 5,000 kg.
Space-Saving Design with Robust Construction
The compact "short-space" design was developed specifically to meet the needs of manufacturers with limited production floor space. The system reduces overall line length and eliminates separate loop pits or buffer zones, making it ideal for space-constrained workshops .All straightening rollers are manufactured from GCr15 bearing steel, heat-treated to HRC60°±2, hard-chrome plated, and precision-ground for extended service life and consistent flattening performance . The heavy-duty steel frame ensures durability and stability under continuous operation.
Easy Operation & Maintenance

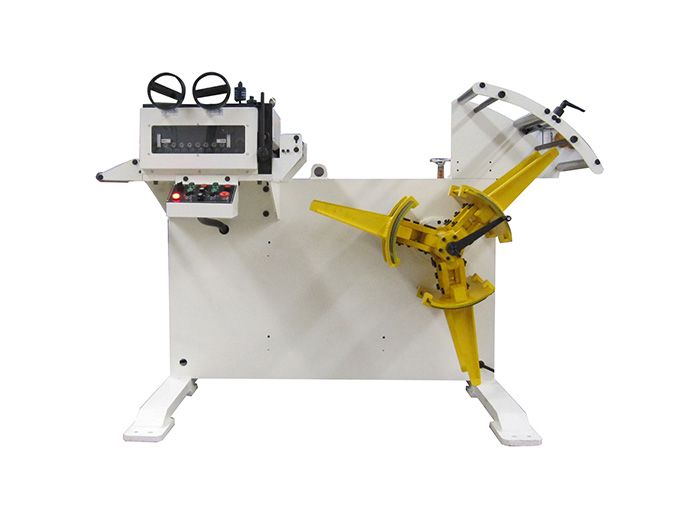

The user-friendly console and intuitive controls allow for quick setup and adjustment. The straightening gap is easily adjusted via a worm gear mechanism with a dial indicator for precise setting . The unique flip-top design allows workers to clean the straightening rolls easily, reducing downtime and ensuring consistent performance .
Customizable Solutions
SUNRUI offers extensive customization, including special roller materials (e.g., PU rollers for soft materials like aluminum or copper to prevent scratching), film collection devices for sensitive surfaces, and various control system options . We understand the unique needs of our clients and provide tailor-made solutions accordingly.
Key Applications
SUNRUI 2-in-1 decoiler straighteners are widely used in industries requiring precise and efficient coil handling and leveling:
Automotive: Brackets, dampers, brake pads, seat components, and small structural parts
Appliance Manufacturing: Air conditioner chassis, refrigerator panels, washing machine components
Electronics & Hardware: Connectors, terminals, computer hardware, mobile phone parts
Construction & General Fabrication: Building hardware, structural profiles, shelving components
Trusted by Industry
With over 20 years of experience in coil processing automation, SUNRUI delivers equipment that combines precision engineering with cost-effective solutions. Our commitment to full-cycle service—from pre-sale consultation through installation, training, and after-sales support—ensures your production line runs reliably for years.
Ready to Optimize Your Stamping Line? Let's Talk.
Choosing the right coil processing equipment is a critical decision for your production efficiency and bottom line. Whether you need ultra-precision leveling (GL-B), a versatile standard solution (GL), or heavy-duty performance (GL-H), the SUNRUI team is here to help.Email: info@sz-sunrui.com
Phone: +86-13510169882
Contact our team today. We'll help you find the right 2-in-1 solution for your stamping line.
SUNRUI 2 IN 1 decoiler straightener --- Frequently Asked Questions
1. What is a Decoiler Straightener?
A Decoiler Straightener is a 2-in-1 coil handling machine that combines an uncoiler and a straightener into one compact unit. It unwinds metal coils and removes coil set before feeding the material into the next production process, such as stamping, roll forming, or slitting.
2. What are the advantages of a 2 in 1 Decoiler Straightener?
A 2-in-1 machine saves factory space, reduces installation costs, improves coil feeding stability, shortens material travel distance, and increases production efficiency.
3. What materials can the SUNRUI Decoiler Straightener process?
Our machines are suitable for:
Carbon Steel
Stainless Steel
Galvanized Steel
Aluminum
Copper
Cold Rolled Steel
Hot Rolled Steel
They can also be customized for other metal materials.
4. What material thickness can your machine handle?
SUNRUI offers several models covering different thickness ranges:
0.6-6.0mm
Up to 10mm for customized solutions.
5. What coil widths are available?
Standard coil widths range from 100 mm to 1,600 mm, with wider custom designs available upon request.
6. What coil weight can the machine support?
Depending on the model, the loading capacity ranges from 750 kg to 10,000 kg, while hydraulic models can support even heavier coils.
7. Can the machine process stainless steel coils?
Yes. SUNRUI Decoiler Straighteners are designed to process stainless steel without compromising straightening quality.
8. Is hydraulic expansion available?
Yes. Hydraulic expansion is available for heavy coils, making loading easier, safer, and more efficient.
9. Can I add a pressure arm?
Yes. A pneumatic or hydraulic pressure arm is available to prevent loose coils from expanding during uncoiling.
10. What industries use Decoiler Straighteners?
They are widely used in:
Automotive Parts
Home Appliances
Electronics
Metal Furniture
Hardware Products
Construction Components
Solar Energy Parts
11. Why choose a combined machine instead of separate machines?
A combined machine reduces floor space, minimizes material looping, improves feeding accuracy, and lowers installation and maintenance costs.
12. What is the feeding speed?
The standard feeding speed is approximately 16 m/min, with customized configurations available for different production requirements.
13. How many straightening rollers are included?
The standard model uses 7/9/11/15/17 precision straightening rollers, while special applications may require additional rollers.
14. How is straightening accuracy adjusted?
The roller gap is adjusted using a worm gear mechanism combined with pneumatic pressure, allowing precise leveling for different material thicknesses.
15. Can the machine work with an NC Servo Feeder?
Yes. It is commonly integrated with an NC Servo Feeder and Mechanical Press to create a complete automatic stamping line.
16. Is the machine suitable for progressive die stamping?
Yes. It is widely used in progressive die production lines requiring stable and continuous material feeding.
17. Can the machine handle high-strength steel?
Yes. SUNRUI provides customized solutions for high-strength steel applications, depending on the material's yield strength and thickness.
18. Is customization available?
Yes. We can customize.
19. What information should I provide before requesting a quotation?
Please provide:
Material type
Thickness
Width
Coil weight
Coil inner diameter
Coil outer diameter
Production speed
Application
20. What is the difference between manual and hydraulic expansion?
Manual expansion is suitable for lighter coils, while hydraulic expansion offers faster, safer, and easier operation for heavy-duty production.
21. Can the machine be connected to different press brands?
Yes. It can be matched with most mechanical presses, hydraulic presses, and punching machines.
22. How do I maintain the Decoiler Straightener?
Regular maintenance includes:
Incorrect roller adjustment
Material exceeding machine capacity
Roller wear
Incorrect material settings
24. What causes feeding instability?
Common causes include:
Loose coil tension
Improper roller pressure
Incorrect alignment
Worn rollers
Servo synchronization issues
25. Can the machine process aluminum coils?
Yes. Proper roller pressure adjustment allows smooth processing of aluminum without damaging the material.
26. Is operator training provided?
Yes. SUNRUI provides operation manuals, installation guidance, online technical support, and training assistance.
27. How long is the delivery time?
Delivery depends on machine configuration and customization requirements. Standard models generally have shorter production times than fully customized solutions.
28. What warranty does SUNRUI provide?
SUNRUI provides warranty coverage together with lifetime technical support and after-sales service. Specific warranty terms are confirmed with each order.
29. Why choose SUNRUI MACHINE?
SUNRUI MACHINE specializes in coil handling equipment, including Decoiler Straighteners, Servo Feeders, Coil Feed Lines, and complete press automation systems. We provide customized solutions, reliable quality, and global technical support.
30. How can I select the right Decoiler Straightener?
The ideal machine depends on:
Material type
Material thickness
Coil width
Coil weight
Production speed
Press capacity
Available factory space
Still Have Questions About the Right 2-in-1 Solution?Choosing the right decoiler straightener depends on your specific material, width, and production goals. Our engineering team is ready to provide a free application review and equipment recommendation based on your actual requirements.
