An advanced and efficient solution of Coil Feed Line for the metal stamping industry
Raw Material Type: Hot-Rolled Metal steel, Cold-Rolled Metal steel, Galvanized Metal steel ,Stainless Steel etc.
Coil Width: 60-600 mm
Material Thickness: 0.6-6.0 mm
Yield Strength: ≤245 N/mm2
Tensile Strength: ≤392 N/mm2
Coil I.D : 475-520mm
Coil O.D : 1200mm
Max. loading weight: 5ton
Working Speed: 0-22m/min
Are you looking for a cutting-edge and efficient solution for your metal stamping needs?
SUNRUI Coil feed line MFL4-600 is an integrated machine that combines three components - the decoiler, straightener, and feeder into a single controlled unit to maximize production efficiency while minimizing costs.
The Decoiler machine ensures uniform and stable material feeding by minimizing the coil's tension, preventing deformation, and reducing the time for coil change.
The Straightener ensures the consistent performance of the flat metal plate by using 7 rollers to reduce the plate's thickness and sharpness.
The Feeder of MFL4-600 provides accurate and reliable feeding of sheet metal in the production process.
Moreover, the MFL4-600's precise numerical control system ensures that errors are minimized during the entire production process.
With an automatic detection system, the machine can automatically adjust tension, speed, and feeding length to ensure that production runs smoothly, saving both time and labor costs.
SUNRUI MACHINE MFL4-600 Coil Feed Line is a versatile apparatus that can handle a wide range of sheet metal coil sizes between 0.6 to 6.0 mm thickness, and 70 to 600 mm width, with a maximum feeding speed of 22m/min.
This customized solution is a perfect fit for precision metal stamping and roll forming applications in the automotive, construction, and electronic industries.
SUNRUI MACHINE Coil Feed Line MFL4-600 is the optimal solution for achieving efficient and cost-effective production. Its advanced technology, combined with precise numerical control, ensures a streamlined and error-free production process, ultimately delivering a superior quality product.
Contact SUNRUI MACHINE for more information on how this impressive machine can improve the efficiency and quality of your metal stamping and metalforming operations.

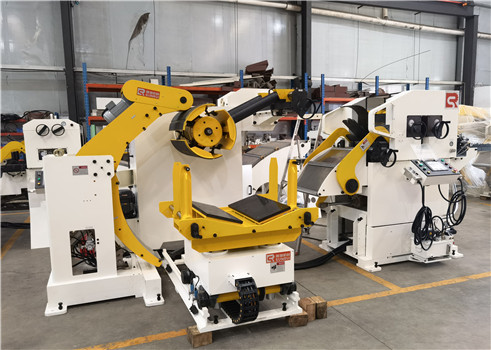

Compact coil feed line MFL4-600
